INTRODUCING THE XLifter - Defender L663, Range Rover L405, RR Sport L494

Air-suspension controller with the self-leveling feature for the Land Rover® Defender 110 (L663), Land Rover® (L405) and  Land Rover Sport® (L495).

XLifter is an advanced air-suspension controller for Land Rover® vehicles, enhancing your off-road or expedition travel by maximizing air suspension capabilities. It functions as an electronic “lift kit”, allowing you to adjust the vehicle’s height at the touch of a button. XLifter also automatically levels the vehicle, eliminating the need to find a flat spot while camping.

Notice: The product is shipped from the Czech Republic (EU). Shipments to countries outside of the EU may be subject to import duties. Costs for customs are not included in the price. For more information see our FAQ.

Description

• Body height adjustment in 7 predefined programs: -35 mm, -25 mm, -15 mm, 0 mm, +15 mm, +25 mm, +45 mm, +75 mm. For L494 RRS, the last two are +40 mm and +65 mm.
• Precise height adjustment from -35 mm to +75 mm (+65 mm for L494) in +-5 mm steps in "free" mode.
• Automatic self-leveling for comfortable camping. XLifter is capable to level maximum tilt of approximately 3.4° in longitudinal (pitch) or 4° in traverse (roll) direction. Or in any direction if sum of inclines does not exceed 3-4° depending on vehicle position.
• Extra features: Trailer assistant, compressor temperature monitoring.

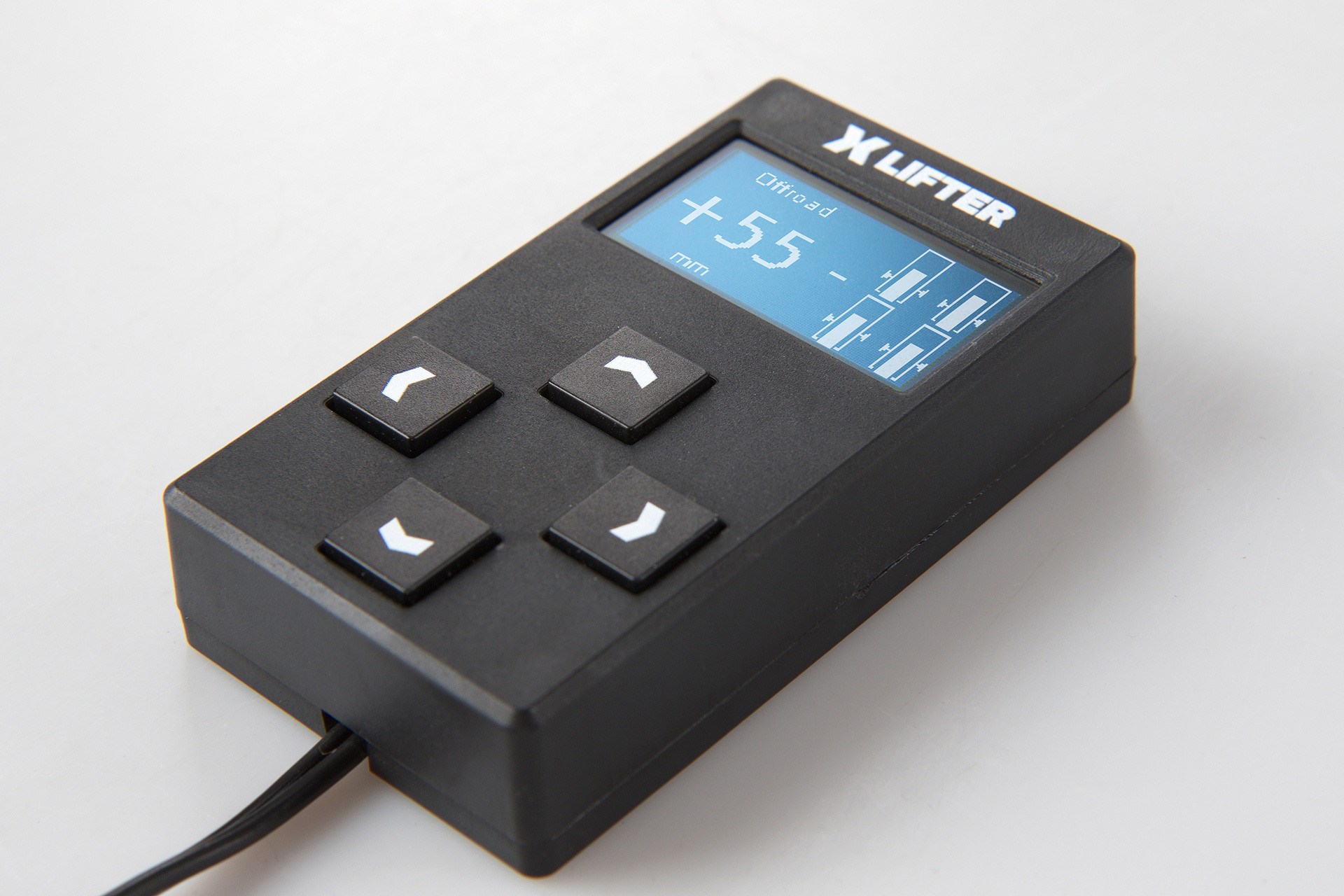

• Intuitive controls, a graphic OLED display, wireless controller connection.
• Installation without in-vehicle modifications, fully removable.
• Dimensions: controller 40 × 71 × 15 mm, EAS unit: 70 × 110 × 29 mm

Documents for download:

• Xlifter User guide for new generation and Quick calibration leaflet
• Xlifter installation manual for L663 Defender and for the L495 Range Rover Sport
